Motherboard

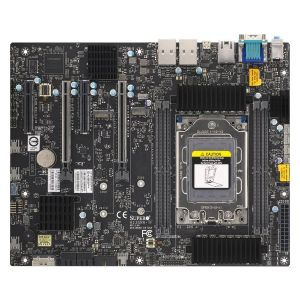

1. AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series and Ryzen™ Threadripper™ 9000/7000 Series, LGA-4844, Up to 350W TDP, Overclocking supported
2. Up to 1TB of memory with speeds of 5200+MT/s (1DPC) with overclocking support
3. M.2 Interface: 2 PCIe 4.0 x4 (RAID 0, 1)M.2 Form Factor: 2280/22110M.2 Key: M-Socket
4. 2 PCIe 5.0 x16, support 2 triple/dual/single-width GPU cards2 PCIe 5.0 x8
5. Dual 10Gb LAN with Broadcom
6. 4 SATA 3 (6Gb, RAID 0, 1, 10)
7. 1 USB 3.2 Gen2x2 (20G, 1 rear Type-C)1 USB 3.2 Gen2x1 (10G, 1 header Type-C)4 USB 3.2 Gen2x1 (4 rear Type-A)1 USB 3.2 Gen1x1 (5Gb, 1 header Type-A 2 ports)1 USB 2.0 (1 header Type-A 2 ports)
8. 1 Dedicated LAN for IPMI
9. Overclocking supported on CPU and RDIMM

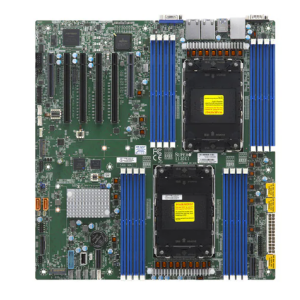

5th/4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E) , CPU TDP supports up to 350W TDP
24 DIMM slots
4 PCIe 5.0 x16 Slots
2 SataDom

AMD EPYC™ 9004/9005* Series Processors (*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
24 DIMM slots
10 PCIe 5.0 x16 Slots
32 SATA3 Hybrid

1. Dual AMD EPYC™ 9004/9005* Series Processors
2. Support up to DDR5 24 DIMM slots
3. Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots or mix and match
4. 12 Hot-swap 3.5"/2.5" NVMe/SATA/SAS drive bays
   2 M.2 PCIe 3.0 NVMe slots
5. Dual Titanium Level 1600W redundant power supplies

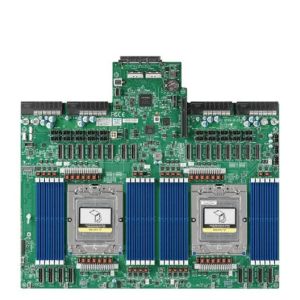

1. AMD EPYC™ 9004/9005* Series Processors (*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
2. Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400 MT/s (Please check System Memory Section for detail)
3. 10 PCIe 5.0 x8 MCIO connectors
4. 32 SATA3 Hybrid via MCIO, 1 AIOM slot
5. 4 USB 3.0 ports (2 rear via I/O board + 2 via header)
6. ASPEED AST2600 BMC graphics via I/O board

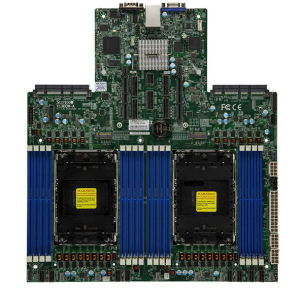

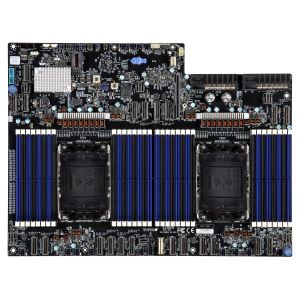

1. 5th/4th Gen Intel® Xeon® Scalable processors and Intel® Xeon® Max series processors, Dual Sockets LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
2. Supports HBM and CXL
3. Intel C741® Chipset
4. Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s in 32 DIMM slots
5. 20 PCIe 5.0 MCIO x8
6. Networking options provided via Ultra RiserDual LAN with 10GbE LAN via Intel® X710
7. 8 SATA 3.0

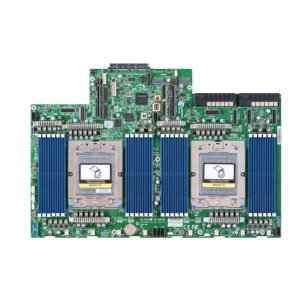

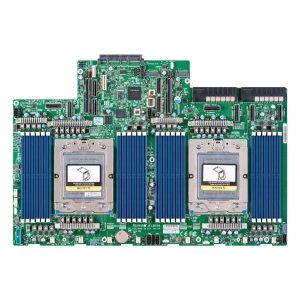

1. Dual AMD EPYC™ 9004/9005* Series Processors
2. Support up to DDR5 24 DIMM slots
3. 20 PCIe 5.0 x8 MCIO to PCIe board
4. 2 USB 3.0 ports via I/O board
5. 2 SATA3, 4 NVMe, 1 AIOM slot
6. ASPEED AST2600 BMC graphics via I/O board

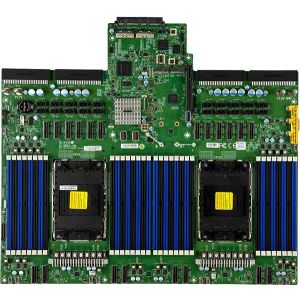

1. 5th/4th Gen Intel® Xeon® Scalable processors and Intel® Xeon® Max series processors, Dual Sockets LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
2. Supports HBM and CXL
3. Intel C741® Chipset
4. Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s in 32 DIMM slots
5. 20 PCIe 5.0 MCIO x8
6. Networking options provided via Ultra RiserDual LAN with 10GbE LAN via Intel® X710
7. 8 SATA 3.0
